Advanced Underground Mine Ventilation Systems

Fecha de publicación: 23 abril 2024

En mining industry, a global economic powerhouse, not only supports thousands of jobs but also provides crucial raw materials, minerals, and metals that underpin the global economy. These natural resources drive innovation, facilitate the transition to renewable energy, and support significant engineering achievements, underscoring the vital role of the industry and its professionals.

However, underground mines present high-risk work environments filled with physical, chemical, and biological hazards for workers. Despite these dangers, effective strategies can help mitigate these risks, particularly in the area of ventilation. Adequate air ventilation is critical for mining operations as it dilutes and removes toxic and potentially explosive gases while regulating the temperature within the mining environment.

Minetek, a global leader in innovative mining solutions, plays a pivotal role in enhancing safety and operational performance in the mining industry. With Minetek’s advanced ventilation systems, the industry can look forward to a secure and optimistic future, knowing that it has a reliable partner to ensure its operations are safe and efficient.

This article examines the legislative requirements for underground mine ventilation in key mining countries, highlighting the economic significance of their mining exports. It particularly highlights Minetek’s pivotal role in ensuring compliance and efficiency, providing the industry with innovative solutions that not only meet but exceed global standards. With Minetek’s advanced ventilation systems, the industry is moving forward with confidence in its progress and future.

Importance of Effective Ventilation in Underground Mining

While the benefits of mining are clear, it is crucial to recognize the various risks associated with underground operations. Effective ventilation is not just a necessity; it is a vital measure for mitigating these risks. The proper air ventilation system is a lifeline, helping to dilute and remove toxic and potentially explosive gases while also regulating the temperature inside the mine, which can soar to extremely high levels due to heavy machinery operations. Ventilation systems provide fresh air that helps to dilute harmful contaminants, protecting the health and safety of miners while also preserving machinery and equipment.

Underground mining ventilation is essential for controlling air quality by supplying fresh air that dilutes and eliminates contaminants such as dust, diesel fumes, excess heat, and stagnant air. There are different types of ventilation fans, each designed for specific applications, but all serve the same purpose: to provide clean air and ensure the safety of miners working underground.

Underground-ventilation- systems-image1

Primary Ventilation Fans: Ensuring Optimal Airflow

A primary ventilation system is crucial for the operation of every mine, as it provides essential pathways for air to circulate in and out of the underground environment. This system includes Ventiladores primarios, commonly known as Main Fans, which are strategically located to introduce fresh air into the mine while simultaneously expelling contaminated air. These powerful fans, typically installed on the surface or underground, are capable of moving air at rates of up to 150 cubic meters per second (approximately 5,300 cubic feet per second). The goal is to refresh the underground air every 20 to 40 minutes.

Larger or deeper mines may necessitate multiple return airways or additional Booster Fans to manage airflow effectively. For instance, mines in Australia can circulate between 450 and 900 cubic meters of air per second (about 15,900 to 31,800 cubic feet per second) through their main declines.

Minetek offers a wide range of innovative primary fans, known as our Raptor™ Fan Series, which provide significant economic savings, exceptional durability, and flexibility that outperforms traditional fan solutions. Minetek’s Raptor™ Series is not just a fan; it’s a comprehensive ventilation solution. Customize your fan with optional features such as the Performance on Demand (POD) mechanism for flexible airflow control and the anti-stall chamber to prevent operational disruptions. Configuration options are versatile, including surface mounting, horizontal mounting, and bulkhead mounting to suit various installation needs.

Secondary Ventilation Systems: Targeted Air Distribution

Secondary ventilation systems play a vital role in delivering air to development ends, stopes, and service facilities within a mine. These systems branch off from the primary circuit to provide targeted airflow where needed. They can be designed as “dead-end” configurations or as “parallel” or “series in parallel” circuits.

Secondary auxiliary fans are smaller and more portable, making them effective in areas where airflow might otherwise be stagnant. These fans are critical components of ventilation systems, helping to regulate airflow throughout all working areas of a mine and enhancing overall mine safety.

Minetek’s Raptor™ Secondary Series Fan is 8.2 ft (2,500 mm) shorter and 2,866 lbs (1,300 kg) lighter than the industry-standard Twin 110 kW (approximately 147 HP) fan, making installation significantly easier and safer. It consumes 50 kW (approximately 67 HP) less energy than the standard twin model while maintaining comparable performance. The fan features a single-stage motor, which is more energy-efficient than twin-stage fans, and an aluminum impeller commonly used by competitors, making the Raptor™ ventilation fan both efficient and effective.

Its smaller and lighter design allows for easier installation in tighter spaces, providing versatility in deployment. Additionally, the ability to lift the fan as a single unit—compared to the two-piece requirement of Twin 110 kW / 147.5 HP fans—simplifies both relocation and installation. Este means fewer fans are needed overall, resulting in long-term cost savings, while the low-profile ducting eases installation compared to other fans on the market.

Key applications for the Raptor™ series fan include

  • Secondary ventilation
  • Booster applications
  • Long duct runs
  • Mounting from backs or within bulkheads

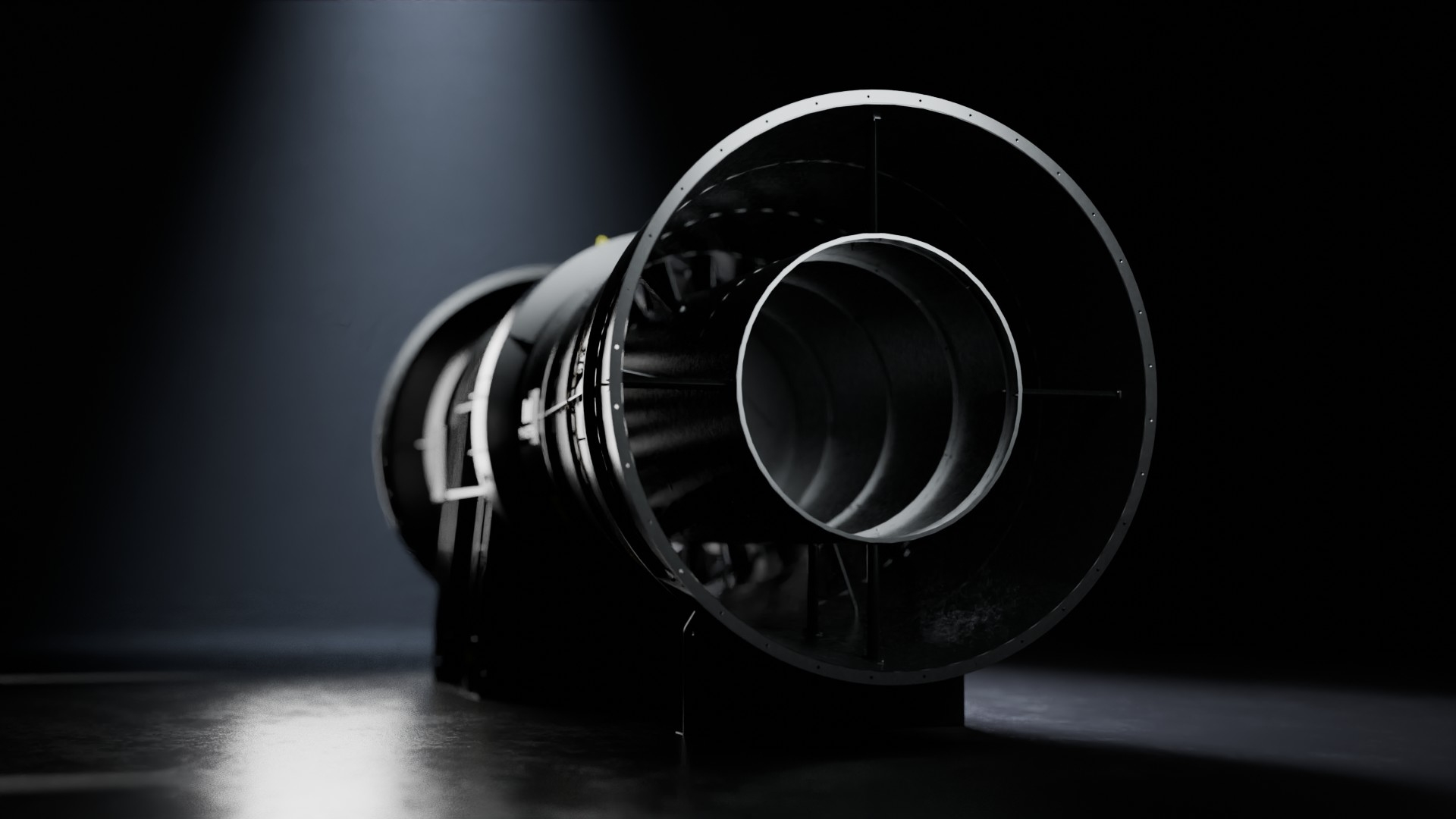

Minetek Air Raptor fan

Cusher Extraction Ventilation Fan

En Ventilador serie Crusher is designed for efficient and cost-effective dust extraction during underground dumping and crushing processes. This fan is compact and highly wear-resistant, specifically engineered to handle the high abrasion rates caused by airborne dust.

Featuring a robust steel impeller, the Crusher Series Fan ensures longevity and consistent performance, even in the most challenging environments. As a high-pressure, high-efficiency solution, it meets required operational demands while providing an extended service life.

With multiple motor sizes tailored to specific site requirements, the fan also includes customizable features such as Performance on Demand, automatic greasing, and an anti-stall chamber. The Crusher Series Fan offers versatility and can be configured for high dust loading, utilized in horizontal setups, ducted, or adapted for long duct runs.

Ventiladores de refuerzo

Mines can be ventilated using either primary fans alone or in combination with booster fans. A booster fan is a large underground fan installed in series with the main surface fan, designed to increase the air pressure of the ventilation moving through the air ducts.

Proper design and utilization of a booster fan help reduce the pressure on the main fan, minimize leakage, and lower ventilation costs—especially in high-resistance networks typical of deep and extensive mining areas. However, if a booster fan is not appropriately sized and positioned in relation to the primary fan, it can lead to uncontrolled air recirculation.

Primary fans are often repurposed as booster fans, serving both return and intake airways. With Minetek’s ventilation solutions, you can strategically optimize underground airflow by integrating them into the main ventilation system, making them an excellent choice for booster ventilation.

Bulkhead Fans

A bulkhead is a crucial divider within the tunnel, providing a secure mounting point for ventilation fans. Primary fans are commonly installed onto bulkheads, which are retaining walls used in mines to prevent flooding. Bulkhead fans are rigid and highly durable, making them one of the more expensive components of mine development due to the number of units needed, potential loss of efficiency, and installation costs. Our bulkhead designs are engineered to withstand high pressures and deliver unmatched performance in the challenging environments of the mining industry.

Minetek can reduce the number of fans required for bulkheads by half. With its smaller size, lighter design, and durable impeller, our fans facilitate more straightforward installation. Our innovative Performance on Demand (POD) and anti-stall technology enable you to synchronize the bulkhead fans to operate together effectively, providing optimal airflow for your underground mining operations.

Conductos largos

In underground mines, auxiliary ventilation duct-fan systems often extend over hundreds, sometimes thousands, of meters. These systems typically consist of push configurations made of either single or twin vent lines, with one or two head fans in series. Some systems also incorporate booster fans to provide the necessary pressure for maintaining airflow.

Long ventilation lines require careful design to ensure that the volume of air needed is delivered throughout the system with minimal losses. Minetek’s High Output (HO) Axial Fans are ideal for long duct runs. By installing a single auxiliary fan that can adjust to the project’s increasing demands as it expands, you save time and money typically spent on additional fans. Furthermore, these fans can exceed the required duty point to effectively clear gases and dust, allowing for quick re-entry, making Minetek the perfect choice for underground mines.



Underground-ventilation- systems-image3

Shaft Top Bends

Minetek’s Shaft Top Bend solutions are designed to meet the highest standards of performance and durability, ensuring a seamless and effective ventilation process. They offer superior protection against environmental elements. By eliminating the risk of rain entering the tunnel, they provide uninterrupted operations and prolong the lifespan of your infrastructure. A 90-degree shaft top bend is ideal for applications requiring a tight turn, effectively directing airflow without creating large open holes. This design prevents rain ingress and safeguards tunnel integrity. At the same time, a 45-degree shaft top bend is perfect for scenarios where dust avoidance is crucial or where the bend is located near a road. It minimizes dust pickup while maintaining effective airflow.

Despite a slight pressure loss of approximately 150 Pascals associated with the Shaft Top Bend, our advanced ventilation fans are specifically engineered to overcome this minor drawback. This ensures consistent and reliable airflow, maintaining optimal ventilation conditions.

Ventilation doors

Minetek’s self-closing mine ventilation doors effectively contain hazards and regulate airflow in underground mines, ensuring optimal safety and environmental control. Typically utilised for primary or booster ventilation fans, closing when the airflow direction changes. These solutions address two critical scenarios to enhance operational efficiency and safety: preventing backflow during fan shutdown and mitigating backflow in multiple fan configurations. When the fan is inactive, the risk of backflow through the fan poses significant operational challenges. Without adequate door mechanisms, the open vent can act as an uncontrolled opening, potentially leading to airflow disruption or short circuits in the ventilation circuit.

Ventilation dampers

Minetek’s ventilation dampers are the cornerstone of airflow management, offering precise control over underground ventilation systems in metalliferous mines. Installed on walls, these dampers allow engineers to regulate the flow of air, ensuring optimal ventilation performance and environmental control. By adjusting the dampers partially or fully open, operators can easily and efficiently fine-tune the airflow to meet specific requirements. Whether directing airflow to critical areas or managing overall ventilation levels, our dampers provide the flexibility and simplicity needed to achieve precise control over airflow distribution.

Legislative Frameworks for Underground Ventilation

United States

En Mine Safety and Health Act of 1977, enforced by the Mine Safety and Health Administration (MSHA), governs underground ventilation standards in the USA, key provisions include:

  • Ventilation Plans: Mines must submit written ventilation plans to the District Manager for approval, specifying airflow measurements and monitoring protocols (30 CFR 75.370, 57.8520).
  • Airflow Requirements: For diesel equipment, a minimum of 100 cubic feet per minute (CFM) per brake horsepower is required for non-certified equipment to dilute emissions (30 CFR 75.325).
  • Monitoring and Maintenance: Regular inspections and air quality tests are mandatory, with records maintained to ensure compliance (30 CFR 75.371).
  • Corrective Actions: If contaminants like carbon monoxide exceed 50% of the American Conference of Governmental Industrial Hygienists (ACGIH) Threshold Limit Value (TLV), operators must increase airflow or reduce equipment use (30 CFR 70.1900).

Canada

In Canada, ventilation regulations are managed at the provincial level, with Ontario and British Columbia having robust frameworks:

  • Ontario: Regulation 854 (Mines and Mining Plants) under the Occupational Health and Safety Act mandates mechanical ventilation systems to deliver at least 0.06 m³/s per kW for non-certified diesel equipment, as per CSA M424.2 standards Ontario.ca. Section 252 requires adequate ventilation systems, while Section 183.1 specifies airflow requirements for diesel equipment. Non-ventilated areas must be barricaded and monitored for oxygen levels below 19.5% (Section 255).
  • British Columbia: The Occupational Health and Safety Regulation, Part 22, requires ventilation system designs to be pre-approved by the Board, with a minimum airflow of 15 m³/min per m² of working face area (Section 22.19) BC Laws. A qualified person must oversee ventilation, and auxiliary fans must ensure adequate airflow at the work face (Section 22.21).
Ventiladores de ventilación subterránea Minetek Air instalados en una mina

Economic Importance of Mining Exports

United States

The U.S. mining industry is a critical economic driver, though it relies heavily on imports for certain minerals. In 2024, the total value of nonfuel mineral production was $106 billion, with net exports of mineral raw materials and old scrap at $4.8 billion and $18 billion, respectively USGS Mineral Commodity Summaries 2024. While specific 2024 export data is limited, estimates suggest mineral exports (including metals and coal) were approximately $150 billion, representing about 8% of total goods exports. Key export destinations include: Canada: 19% Mexico: 15% China: 10%

The sector employs over 600,000 workers, and Minetek’s ventilation systems reduce operational costs, enhancing competitiveness in global markets.

Canada

Canada’s mining industry is a significant contributor to its economy, with exports valued at CAD 130 billion (approximately USD 95 billion) in 2023, comprising 15% of total exports Government of Canada. Key export markets include: United States: 50%, China: 12% Japan: 8%

The sector supports 650,000 jobs, and Minetek’s advanced ventilation technologies ensure safe and efficient operations, critical for maintaining Canada’s export-driven economic stability.

The mining industries in the EE.UU. and Canada are pivotal to their economies, driving significant export revenue and employment. Strict ventilation regulations ensure worker safety, and Minetek’s advanced solutions provide the flexibility and efficiency needed to comply with these standards. As global demand for minerals continues, Minetek remains committed to delivering innovative ventilation systems that challenge the status quo, fostering sustainable and compliant mining operations worldwide.

Underground-ventilation- systems-image4

Minetek’s Role in Compliance and Efficiency

Minetek’s innovative ventilation solutions, including Raptor™ Primary and Secondary Series and Crusher Fans along with our POD & anti-stall technology, are designed to meet the stringent regulatory requirements of the USA, and Canada. These systems:

  • Ensure Compliance: Deliver precise airflow to meet minimum standards, such as 100 CFM per brake horsepower in the USA, and 0.06 m³/s per kW in Canada.
  • Enhance Safety: Dilute hazardous gases and dust, maintaining air quality above regulatory thresholds.
  • Optimize Efficiency: Reduce energy consumption through dynamic airflow adjustments, lowering operational costs.

By aligning with legislative standards and supporting economic contributions, Minetek empowers mining operations to achieve unsurpassed safety and financial results.

Compliance with Global Mining Ventilation Standards

Ensuring that ventilation systems comply with global standards is crucial for mitigating health risks and maintaining safe working conditions in mining operations. Minetek’s innovative solutions not only prioritize efficiency and safety but also meet stringent regulatory requirements. By integrating advanced technology into their primary and secondary ventilation systems, Minetek supports the mining industry’s commitment to sustainability and the well-being of its employees. With these optimized ventilation solutions, mining operators can enhance safety, improve air quality, and promote operating efficiency, all while adhering to international compliance standards.

Contact Minetek below to learn more about our advanced ventilation systems and how we can support your mining operations. Let’s work together to secure a safer and more efficient future for your mine.
